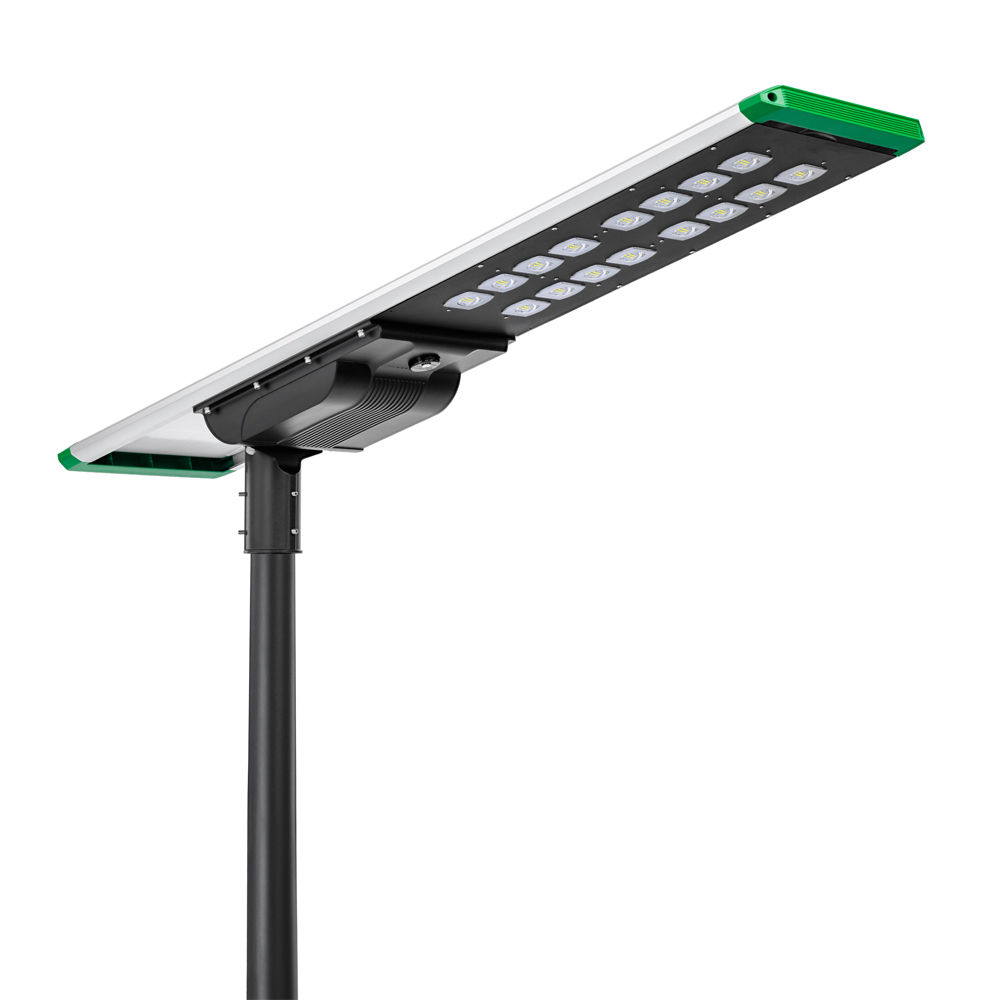

TD-FLY SERIES COB SOLAR STREET LIGHT 50W/60W
| TD-FLY Series | Specifications |
| |
| Led Source |
TD-FLY 40W |
TD-FLY 50W |
TD-FLY 60W |
TD-FLY 80W |
TD-FLY 100W |
TD-FLY 120W |
| Mono Solar Panel |
18V 60W |
18V 70W |
18V 80W |
18V 100W |
18V 130W |
18V 140W |
| LifePO4 Battery |
12.8V 18AH |
12.8V 24AH |
12.8V 30AH |
12.8V 36AH |
12.8V48AH |
12.8V 54AH |
| LED(Bridgelux) |
3030/96PCS |
3030/144PCS |
3030/144PCS |
3030/192PCS |
3030/288PCS |
3030/288PCS |
| Color Temperature |
2700K-6500K , RA>70 |
| Brightness |
220LM/W |
| Working Time |
12-15hours, 10-12 cloudy/ rainy days |
| Charging Time |
6-8hours |
| Mounting Caliber |
70-76mm(suggestion) |
| Working Temperature |
-25℃ -+65℃ |
| Body Sensor |
160°,>9m,Activated by customer's need |
| Battery Power Indicators |
100%-75%-50%-25% |
| Fault indicator |
RED/BLUE/GREEN |
| IP Rating/IK Class |
IP66/IK09 |
| Mounting Height |
6-7m |
6-8m |
6-8m |
8-9m |
9-11m |
10-12m |
| Space between 2 lamps |
20-25m |
20-25m |
20-25m |
25-30m |
30-35m |
35-40m |
| Warranty |
3 years / 5 years |
